Baja Designs LP6 Pro LED Auxiliary Light Pod – Driving/Combo Pattern

Description

Revolutionary 200° Lighting Coverage The LP6 Pro isn’t just a spotlight; it’s a total lighting solution. Utilizing 6 forward-projecting LEDs (8,600 lumens) and 4 side-facing IPT LEDs (1,700 lumens), this light ensures you never lose sight of the corners. Whether you’re high-speed desert racing or technical rock crawling, the LP6 provides a smooth transition of light from the center of the trail to the far periphery.

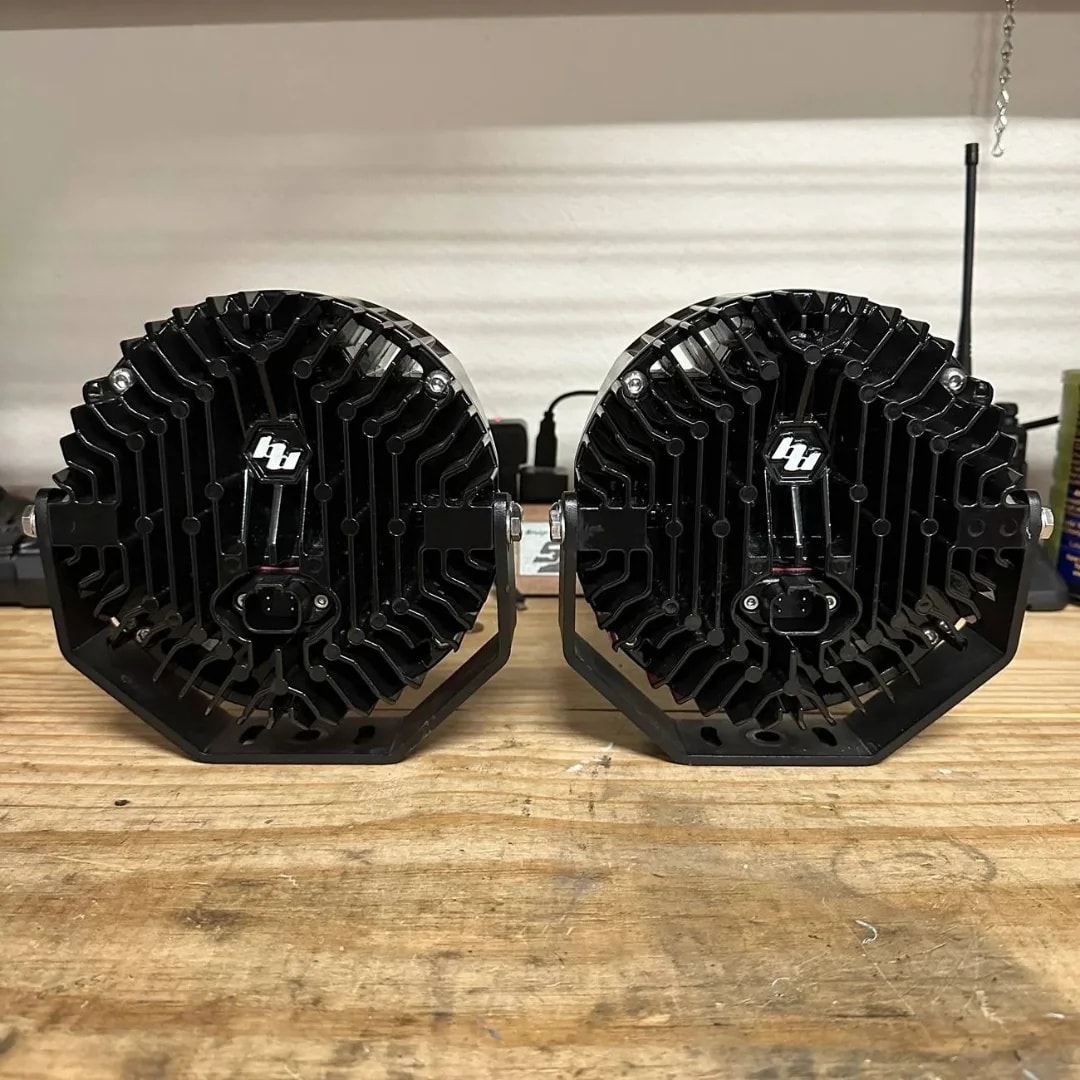

Advanced Thermal Management To handle its high-wattage output, the LP6 utilizes Direct Ducted Cooling (DDC). This proprietary technology funnels air through the front of the housing and over the rear heat sinks, significantly increasing cooling capacity. This allows the LEDs to run at 100% power consistently without thermal throttling.

⚙️ Technical Specifications (Per Light)

• Total Lumens: 10,300 Lumens

• Forward Projecting: 8,600 Lumens (6 LEDs)

• Peripheral (IPT): 1,700 Lumens (4 LEDs)

• Wattage/Amps: 90W / 6.5A (Forward) | 15W / 1.0A (IPT)

• Backlight: Amber Daytime Running Light (DRL)

• Dimensions: 6.5″ Height / 6.5″ Width / 3.2″ Depth

• Weight: 4.2 lbs

• Voltage: 12V-36V Compatible

🚗 Features & Build Quality

• Driving/Combo Pattern: Equipped with both Wide Driving (42°) and Spot (6°) optics.

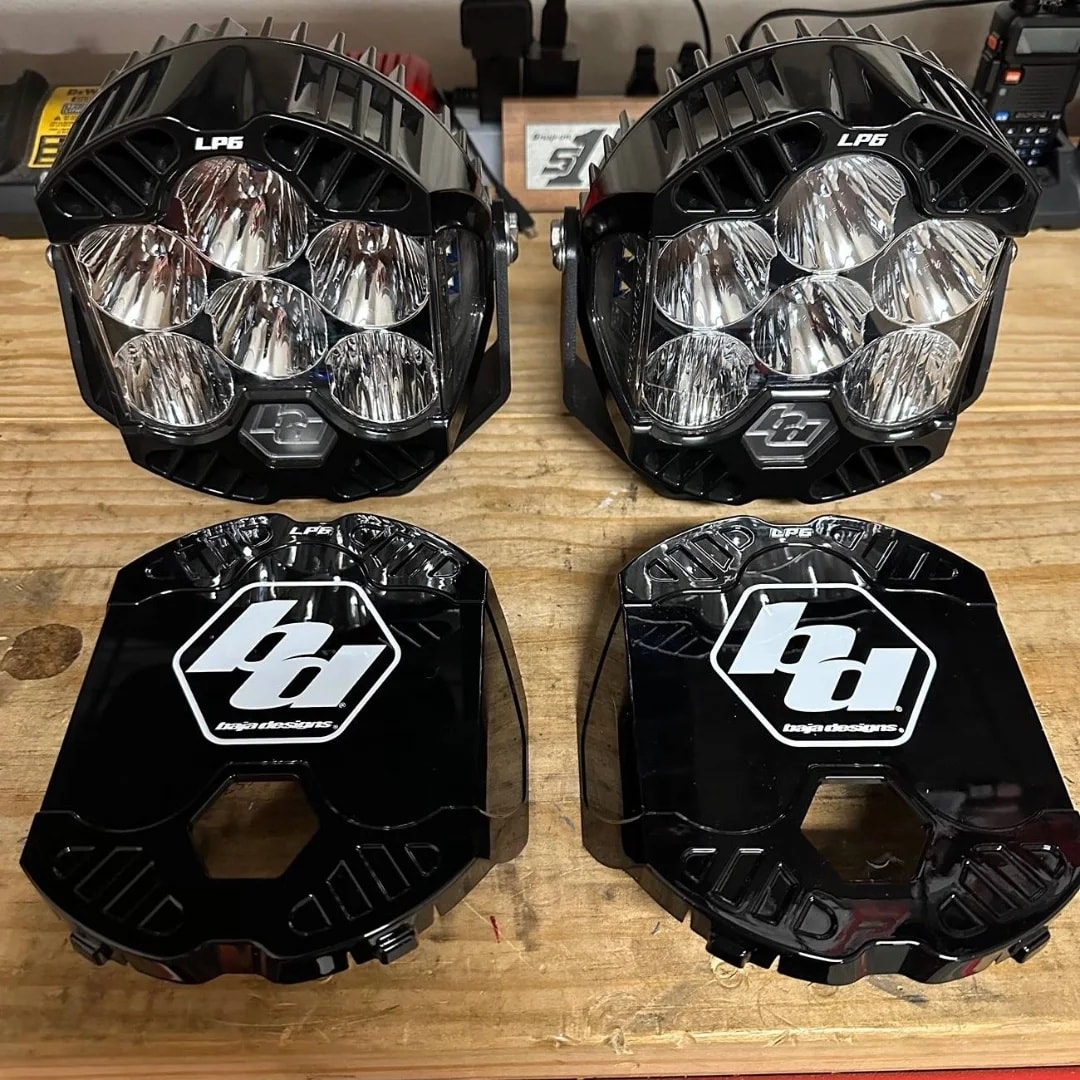

• uService®: User-replaceable lenses and optics for easy field maintenance.

• MoistureBlock™: Waterproof, rainproof, and submersible up to 9 feet.

• CopperDrive®: Safely drives LEDs at 100% capacity for maximum brightness.

• Rugged Construction: Hard-anodized machined aluminum housing with a billet machined bezel.

📦 What’s Included

• 1 x LP6 Pro LED Driving/Combo Light

• Stainless Steel Mounting Bracket & Hardware

• Note: Wiring harness sold separately (Requires Baja Designs 640172).
